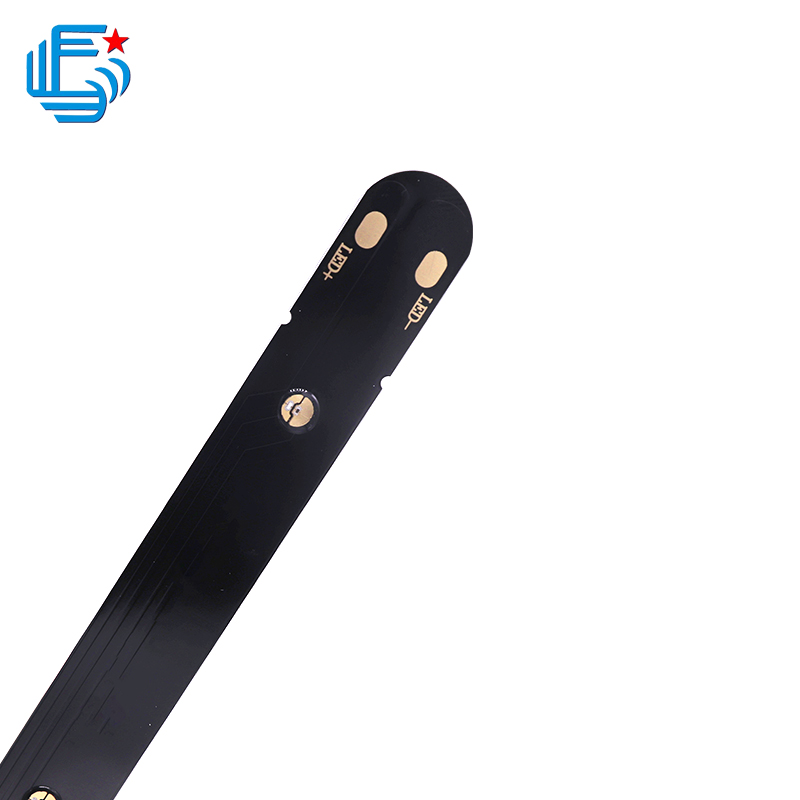

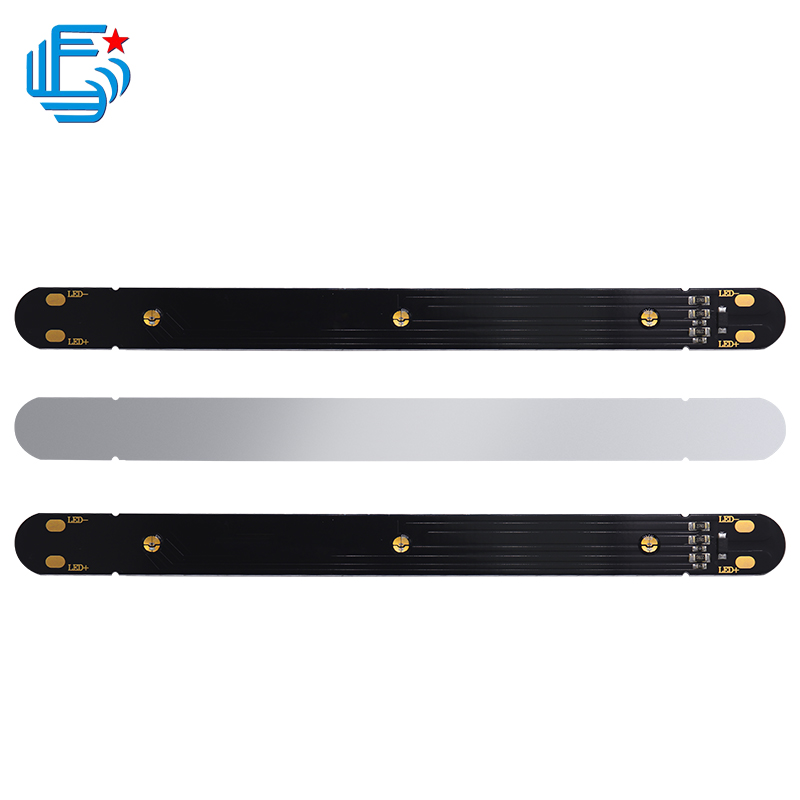

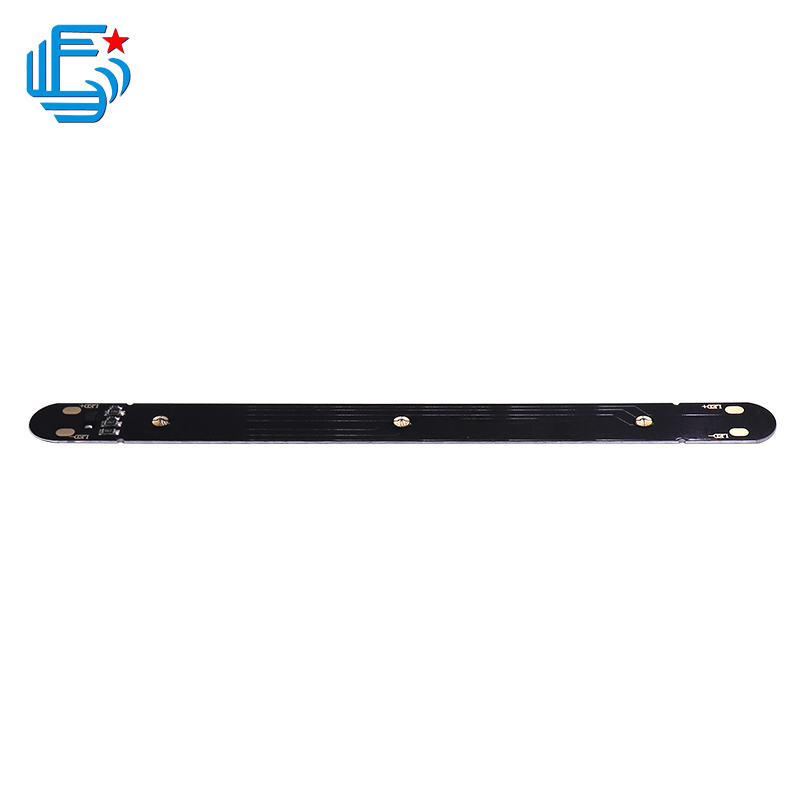

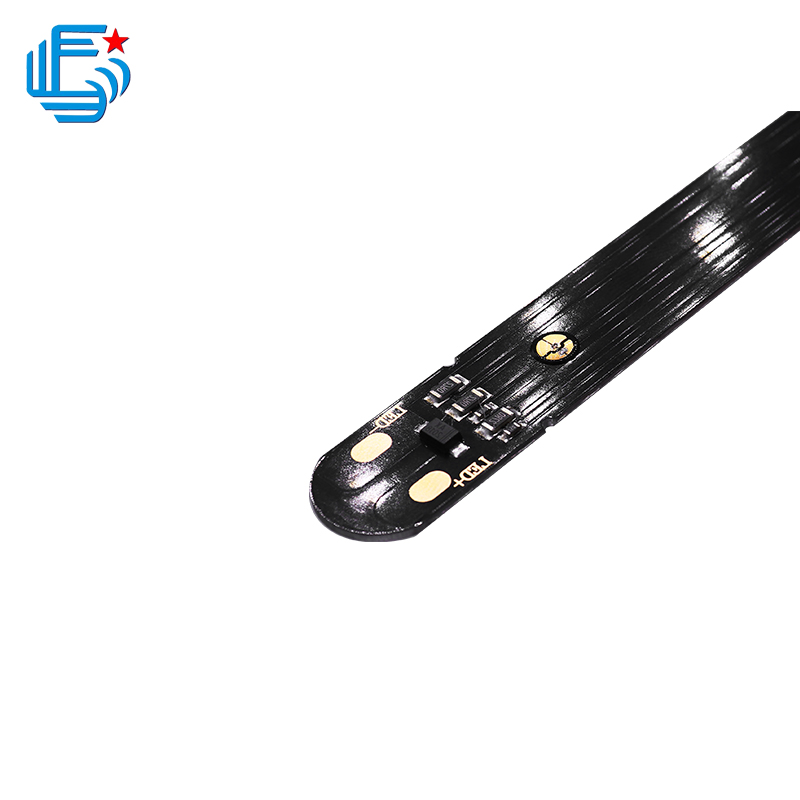

适用箱包 UVC LED紫外模组 深紫外 灯条 可定制生产
产品详情
- 产品特性 Product Characteristics
- 产品示意图 Mechanical Specifications and Materials
- 图纸单位: mm
- 除非另有说明，公差为±0.1 mm
- Unit: mm
- Tolerances unless otherwise mentioned are ±0.1 mm
- 光电特征参数 Typical Optical-Electrical Characteristics（Ta = 25 ℃）
- 产品使用注意事项 Product use precautions
- 产品须轻拿轻放，严禁跌落、严禁锐器接触产品特别是灯珠出光面。
- 请勿使用不符合要求的电源进行驱动。
- 产品应用于额定温度范围内的环境中，不得在高温密闭环境中长时间点亮。
- 请勿将模组直接裸露在高湿环境下，应做好防水防湿隔离处理。
- 产品出光侧的透光窗口应使用高纯石英玻璃板，可有效透过270~285 nm紫外线。
- The product must be handled with care, it is strictly forbidden to fall, and it is strictly forbidden to touch the product, especially the light-emitting surface of the lamp.
- Do not use a power supply that does not meet the requirements for driving.
- The product should not be lit for a long time in a high temperature and closed environment in an environment within the rated temperature range.
- Do not expose the module directly to high humidity. It should be waterproof and moisture-proof.
- The light-transmissive window on the light-emitting side of the product should be made of high-purity quartz glass plate, which can effectively pass 270~285 nm ultraviolet light.
- 重要安全提示 Important safety tips
- 本产品在通电后会产生深紫外线。这种紫外线对人的皮肤及眼睛会造成伤害，应避免未加防护措施人体直接暴露在深紫外线中。
- 任何时候严禁裸眼直视本产品发射出的深紫外线。
- This product produces deep ultraviolet rays when energized. This kind of ultraviolet light can cause damage to human skin and eyes, and should be avoided without direct protection. The human body is directly exposed to deep ultraviolet rays.
- It is strictly forbidden to look directly at the deep ultraviolet light emitted by this product.
本模组为箱包产品量身打造，采用3pcs UVC/UVA双色光源，单颗UVC光功率达到6~8 mW。COB方案大幅降低热阻，增强散热，提高箱包整体安全性。同时，创新的COB方案减少了开发者贴片的过程，降低了生产成本。
| 参数 Item | 符号 Symbol | 单位 Unit | 最小值 Min | 典型值 Typical | ***值 Max |
|---|---|---|---|---|---|
| 输入电压 Input Voltage | Vf | V | / | 9 | / |
| 输入电流 Operation Current | If | mA | 220 | 260 | 300 |
| 输入功率 Input power | P | W | 1.98 | 2.34 | 2.7 |
| 峰值波长 Peak wavelength | λp | nm | / | 270~280/395双色 | / |
| 光功率 Optical power | P0 | mW | 18 | / | 24 |
| LED封装 Package of LED | / | / | / | / | |
| LED数量 LED quatity | / | PCS | / | / | |
| 产品尺寸 Product size | / | mm | / | 17*14*4 mm | / |
